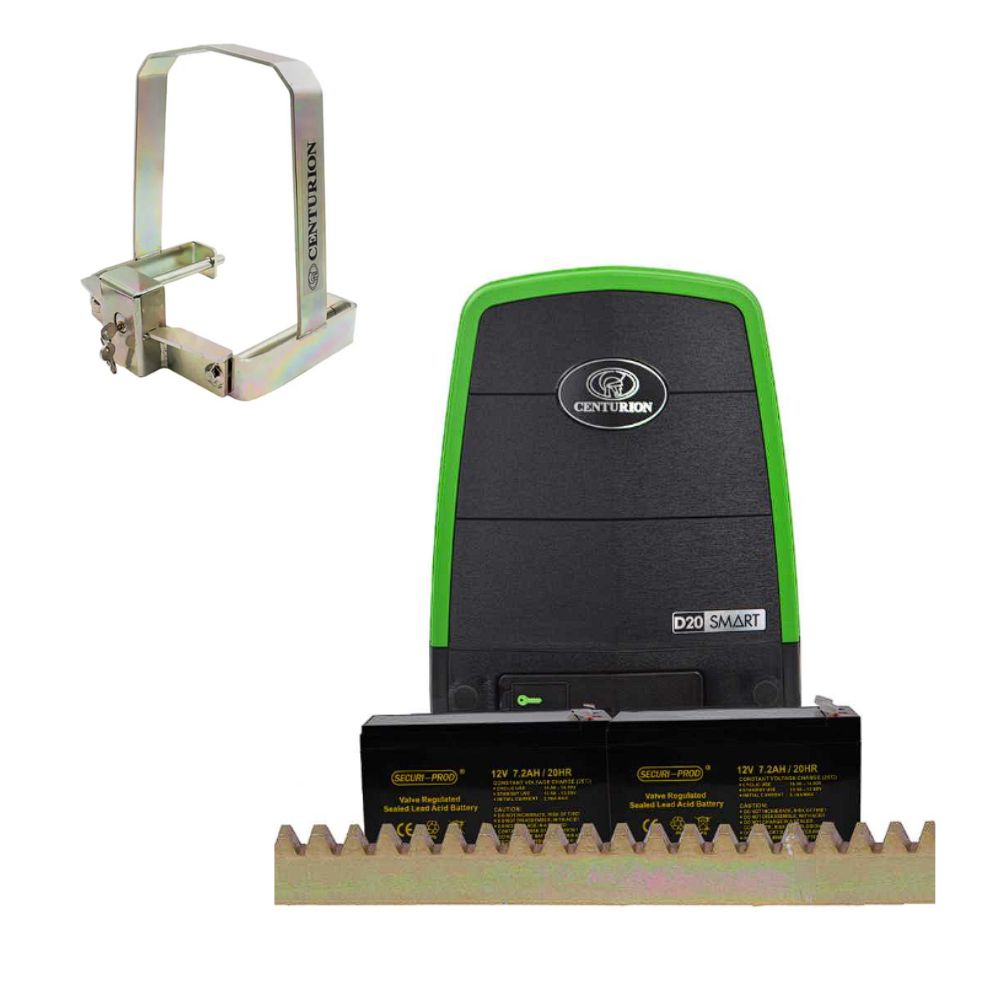

Centurion D20 Smart Full Sliding Gate Automation Kit

Description

The Centurion D20 SMART sliding gate motor is designed for heavy-duty applications, suitable for gates up to 2000kg and 25 meters in length. It features a durable aluminium die-cast gearbox with nylon dressing, and a robust design for high-demand environments. The motor offers a maximum gate speed of up to 18m/min, with speed varying based on load.

Key Specifications:

• Input Voltage: 90V – 240V AC +/-10% @ 50Hz.
• Gate Length (maximum): 25 meters.
• Gate Speed: Up to 18m/min (varies with load).
• Gate Weight (maximum): 2000kg.
• Receiver Type: CENTURION rolling code (Keelog encryption) multichannel.
• Receiver Code Storage: Up to 1500 remotes.
• Receiver Frequency: 433.92MHz.
• Operating Temperature: -15°C to +50°C.
• Manual Override: Lockable lever with key release.
• Drive Pinion: 13T Module.

Additional Features:

• Anti-crushing protection: The D20 Smart has sensitive anti-crushing technology for safety.
• Intruder detection: It includes alarm modes for enhanced security.
• Safety beams: Separate inputs for opening and closing safety beams.
• Battery backup: It can operate on battery power (2x 12V 7.2Ah batteries – not included) during power outages.
• Thief deterrent: The motor includes a theft-deterrent bracket and a vibration sensor that can be linked to an alarm.
• Installer-friendly design: Features easy access to mounting hardware and optimized cable routing.
• Hall Effect technology: Provides precise gate position tracking and smooth stopping.

Installation R2000 excl VAT
Terms and conditions – installation within 50km radius from Hermanus

Centurion D20 Smart
